Five Confusion-Busting Facts About Type Studies

dsc02972

Five important confusion-busting facts about Type Studies:

    1. Type Studies are modern-day timelines used to identify the age of a tool by referencing important changes in its design, manufacture, and physical characteristics.  Different ‘Types’ within a Type Study refers to a particular period of manufacture in which a particular feature or set of features was unique.
    2. Manufacturers didn’t adhere to Type Studies because Type Studies did not exist at the time.  They simply manufactured tools and made periodic changes to design and manufacturing processes, just like manufacturers today.  We identify those periodic changes in the Type Study, and subsequently assign ‘Types’ based on the time period in which they were made.
    3. Type Studies are not interchangeable.   They only apply to a specific model or series of tools.  Different tools and different lines will have different Type Studies.  For example, Stanley’s Bailey line of bench planes have a completely different Type Study from the Bed Rock series.   Some tools, like the no. 71 router plane, have their own individual Type Study.  Many tools have never been studied in depth and don’t have a Type Study at all.
    4. Type Studies are approximations.  The manufacturing timeline was constantly evolving.  Even when design changes were made, existing (old) stock parts were used until their supply was depleted before moving to new parts.  Therefore, the changeover of features sometimes took months or even years, resulting in multiple variations of the same product being released at the same time.  While Type Studies imply that these changes were aligned with a specific date or year, collectors need to understand that the transitions were more evolutionary than revolutionary.
    5. Type Studies are not all-inclusive.  With some manufacturers and some tools, and some tools made during certain periods, features and materials varied quite a bit.  A good example of this is Stanley’s offering of Bailey bench planes made during World War II.  Brass was in short supply, and subsequently, the so-called Type 17 planes made during the war years have a variety of inconsistencies.  Some had brass hardware, where others have steel.  Some have rosewood knobs and totes, while others have painted hardwood.  Some have frog adjustment mechanisms while others don’t.   All made during this period, however, are considered Type 17, regardless of features.
Advertisements

Sometimes You Just Have To Work Out of the Bed of Your Truck

I love this little Stanley no. 18. It’s my first go-to for anything a block plane might be able to handle. It dates from the 1910s (V Logo), and is as close to mint condition as a 100 year old plane can be. The nickel plating on the cap is p e r f e c t, and the japanning 100%. Aside from a little patina on the cheeks, it looks like it just came out of the box.

20170129_142259

20170129_141928

Video History of The Stanley Works



Tool Profile – Sargent no. 514 Low Angle Block Plane

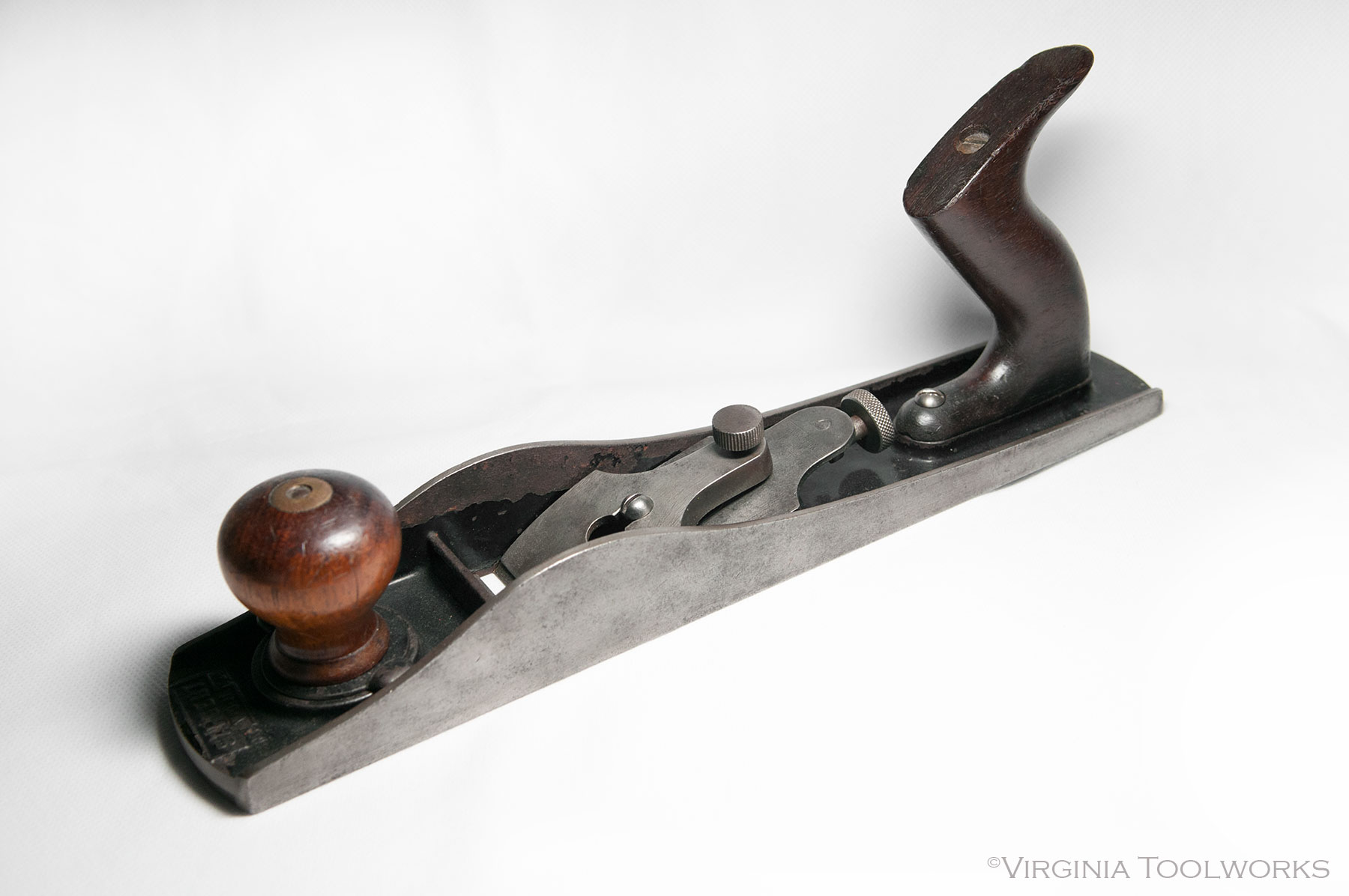

Sargent-514-DSC_1937

Sargent no. 514 Low Angle Block Plane (Virginia Toolworks Collection, c. 1913-1918)

The Sargent no. 514 Low Angle Block Plane was Sargent’s answer to the Stanley no. 62. Manufactured from 1913 to 1935, the 514 is almost identical in outward appearance. Like the Stanley no. 62, this plane features an adjustable mouth and a similar horizontal depth screw adjustment. It differs, however, through its unique lateral pivot adjustment that enables the cutter to be adjusted laterally despite it’s extreme low angle. This adjustment design was patented by Albert A. Page on March 17, 1914.

Sargent-514-DSC_1938

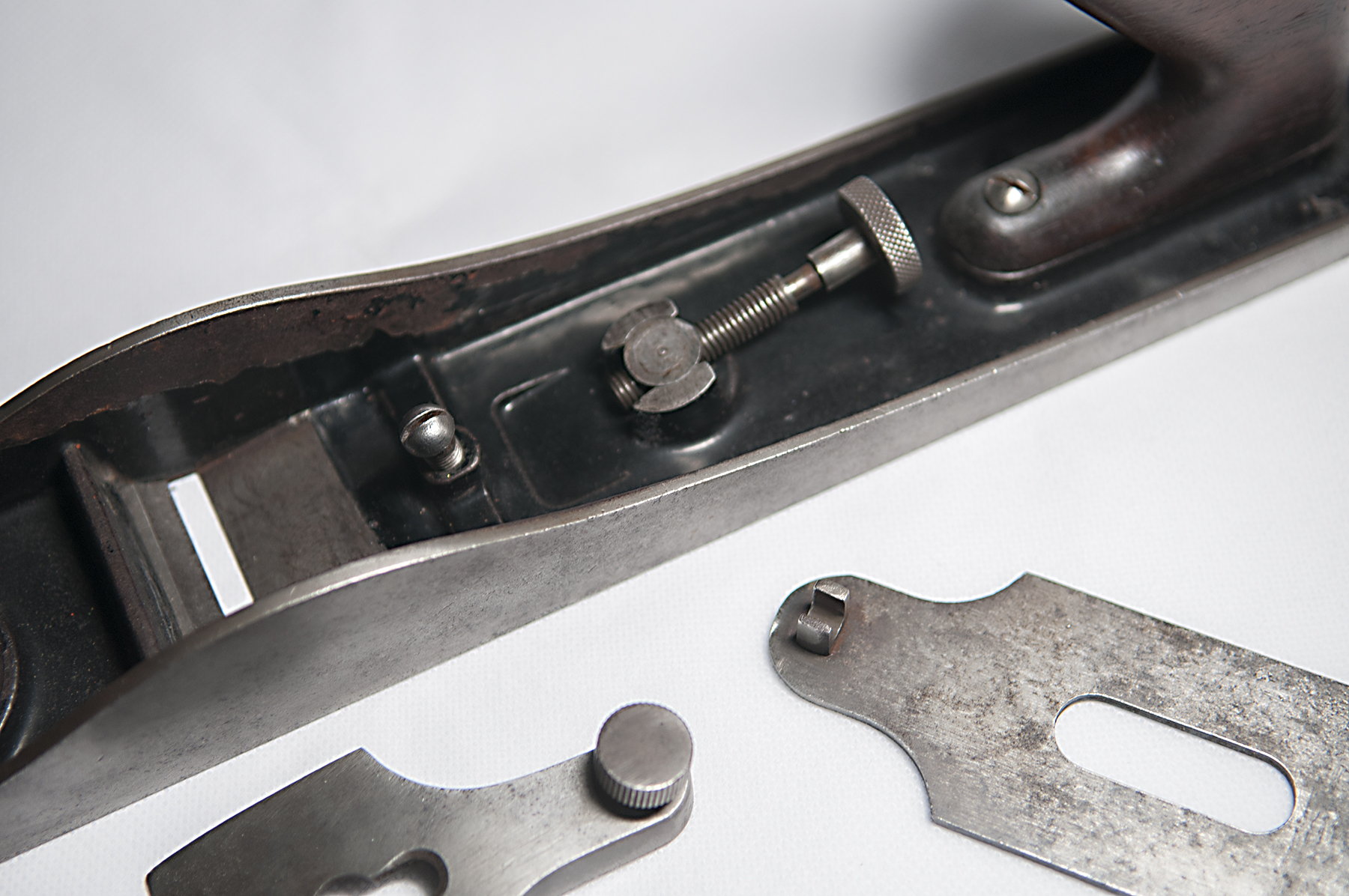

The lateral and depth adjustments

The depth adjustment knob screws into a cylinder that free floats vertically in a two sided raised boss in the main body casting. The depth adjustment bolt threads through this cylinder and pivots in a range limited by the two sides of the boss, enabling the lateral adjustment. A U shaped attachment on the back side of the iron fits into a notched area of the depth adjustment lever between the threads and the knob, providing for depth adjustment. The design is very clever and offers good stability, and is superior to the Stanley no. 62, in my opinion.

Sargent-514-DSC_1939

The mahogany knobs sits on the cast disk with oval lugs

Like the no. 62, the mouth of the no. 514 is also adjustable, using Henry Sargent’s same April 26, 1906 patented design featured on Sargent’s other block planes. The front mahogany knob threads into the sliding toe section of the sole through an adjustment disk with two raised oval thumb lugs integrated into the casting opposite each other. By loosening the mahogany knob, the disk is grasped and the plate positioned forward or backward using the oval thumb lugs, thereby adjusting the size of the mouth opening. I find this a more precise method than the eccentric lever found on the Stanley planes.

Produced in relatively limited quantities, most of these planes are found today with chipped mouth openings or missing parts. This very early example from the Virginia Toolworks collection dates from 1913 to 1918, and is in very fine condition, only missing an area of japanning on the inside cheek. Values on these typically run from about $500 to $1000 depending on the condition.(1)

Sargent-514-DSC_1942

The Stanley no. 62 (rear) and Sargent no. 514 (front) ~ from the Virginia Toolworks Collection

___________________________________
1. Heckel, David, Sargent Planes Identification and Value Guide, 1997

***

Dad’s Sargent Hercules Block Plane

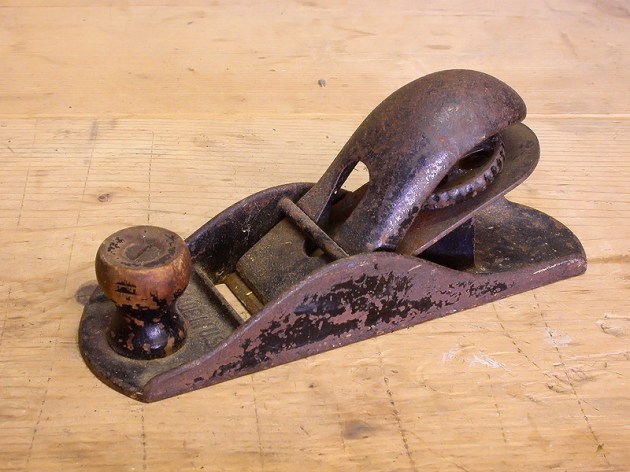

The plane in its original condition in 2008

The Sargent Hercules plane in its original condition in 2008

This old Sargent Hercules block plane, a clone of the Stanley 110, belonged to my dad and is one of just a couple of his tools that I have. The Hercules was Sargent’s lower priced line of ‘handyman’ or value tools. This particular plane lived its life in our outdoor shed and was in pretty rough condition when I got it 8 years ago. I first restored it in 2008, but was never happy with it. At the time, I resisted repainting it, as I do with almost all tools, but so much of the original finish was gone that even after oxidizing, it was lifeless and dull.  In this case, the only way to get it back to anything resembling its original look was a full on refinishing.

DSCN1739

After the original 2008 restoration

The plane has practically no monetary or utility value, and I figured even if I painted it and later changed my mind, stripping it would leave it no worse off than it was to begin with. So last week, I repainted the body with black enamel, including the cheeks, which were apparently japanned or painted to begin with. After a couple of hours of baking in the oven, the paint came out very hard and should be reasonably durable, not that I will be using this plane for much of anything.

Now that it’s all said and done, this old Sargent once again looks pretty good. I think dad would approve.

Dad's Sargent Hercules DSC_1934

The Sargent Hercules after a full refinishing, April 2015

Setting Up and Tuning a Block Plane

165 SB9.5 Type 12 Post1

Stanley Bailey no. 9-1/2, c. 1952-55 ~ one of the most popular block planes of all time

As a follow up to an earlier post about setting up and tuning bench planes, this one will focus solely on block planes. Some of the information is taken directly from that post, so if you’ve read it, it may sound familiar.

On to Setting Up Those Block Planes…

It’s no surprise that so many ‘modern’ woodworkers, especially those used to plug-and-play electric tools, eschew anything that requires sharpening, let alone tuning and fettling to make it work properly.  But the fact is, whether 100 years old or brand spanking new, virtually all planes benefit from some degree of tuning to bring them to their full potential.  Fortunately, this is not a difficult proposition, and actually aids in better understanding how the tool functions and how to get the most out of it.

Below are the basic steps for setting up and tuning a block plane for use.  Block planes tend to be less complicated than bench planes, but there are still many variations, both new and used. I’m purposefully keeping it fairly generic, so some interpretation may be necessary when applying the concepts to the tool in front of you.  But don’t worry, there are no tool police surveilling workshops and garages.  Feel free to skip a step if you don’t think it’s relevant or needed.

Step 1 – Soles Need Saving

I’m not a stickler when it comes to flattening the sole of a plane.  After owning hundreds and using dozens of planes over the years, it’s fairly rare to come across one with a sole so warped, cupped, or bowed that it’s unusable.  If you happen upon one that is truly unusable, my advice is to return it, sell it, or throw it away.  The only possible exceptions are block planes, which are pretty easy to flatten due to their smaller size.  Bench planes are far more difficult, especially the larger ones.  You can take them to a machine shop and have them milled or lapped flat, but forget trying to flatten them yourself with sandpaper unless the problem is very minor.

165 SB9.5 Type 12 Post5

The sole of this plane was lapped by hand using a granite surface plate

If you do decide to lap your plane’s sole flat, you’ll need a dead flat substrate.  The cast iron bed of a table saw or jointer works well, or if you don’t have one of those available and want to keep it on the cheap, a piece of 12” x 12” or larger granite surface plate will work for block planes.  Just make sure you retract the blade and tension the lever cap as you would in actual use.  This puts the correct stress on the plane body.  I start with 60 grit and progress up to about 320.  Removing high spots (convexity) is more critical than low spots (concavity).  Keep in mind that you don’t even need the entire sole dead flat.  As long as you have smooth contact at the toe, around the mouth, and at the heel, the plane will work just fine.

Vintage planes often have raised dings from bouncing around in tool boxes, especially along the edges, toe or heel.  A flat mill file makes very quick work of these minor problems.  Finally, some woodworkers file a very small 45 degree chamfer along each edge of the sole.  This is completely optional, but helps prevent inadvertent gouges when using the plane should you tip it slightly.  I’ve seen some Stanley planes from the mid 20th century that appear to have been made that way at the factory.

Step 2 – Flatten ‘dem Frogs

The hole in the iron straddles the lateral adjustment pivot disc and seats against the tiny frog where it engages the tiny pins on the height adjustment lever mechanism

The hole in the iron straddles the lateral adjustment pivot disc and seats against the tiny frog where it engages the tiny pins on the height adjustment lever mechanism

Block planes do not typically have removable frogs like bench planes, but there are some exceptions, mainly on some of the specialty and low angle planes where part of the frog moves with the iron when adjusting depth of cut. Either way, the function of the frog is the same on all planes. It provides a secure platform on which the iron is supported.  In order for the plane to shave wood correctly, there must not be any movement (wobble, play, rocking, etc.) to the iron.  It must be firmly seated against the frog, so the face of the frog must be as flat and secure as possible. This platform on most block planes is frequently very small, especially when compared to bench planes. Click on the photo to the right and you can see the frog is less than 1/2 square inch.

Since the frog on your block plane is typically not removable, you only need to touch up the seat with a firm sanding block to ensure it is flat.  Also, because the flat sloped area behind the mouth on the plane’s base provides much of the forward support for the iron, it needs to be flat too.  Unfortunately, it’s hard to get to, and since you don’t want to enlarge the mouth at all, just a touch using a small piece of angled wood with fine sandpaper wrapped around it is about as far as you want to take it. Thankfully, this is all that is usually needed to remove old crud. A Dremel or quality flexible shaft tool with a wire wheel brush will also work if the problem is limited to dirt and light corrosion.  Finally, as on the bench plane, clean the threads on all the hardware and add a little light oil to help retard moisture and rust.

Step 3 – Lever Caps (This is not a drinking game…)

18 cap 4

Just the leading edge to the underside of the lever cap at the bottom of the photo needs to be flattened. This photo, taken before flattening, shows the edge to be a little rough, which will compromise flush contact with the iron.

Block planes don’t have cap irons, so the lever cap plays a more important role.  Use your coarse sharpening stone or take a fine file to the back side and remove any rough spots, giving close attention to the leading contact edge.  This is most important on block planes with cast iron hooded style lever caps, such as the old Stanley 9-1/2.  The back sides of these caps are notoriously rough and unfortunately japanned. You don’t need to remove all the japanning, but you do want to get a smooth line of contact down front where it touches the iron along the front edge.  File it smooth and give it a couple of swipes across your 1000 grit stone. If your plane uses one of the nickel plated knuckle style lever caps, just flatten the bottom of the front edge in a similar fashion.

Step 4 – I Pity the Fool Who Don’t Sharpen His Tool!

The iron has been sharpened with a small 2 to 3 degree secondary bevel added (the dark line at the very edge)

The iron has been sharpened with a small 2 to 3 degree secondary bevel added (the dark line at the very edge)

The simple fact is, even with brand new planes, the irons require final honing before use.  This is not due to some lack of attention on the part of manufacturers.  Irons are provided this way on purpose, since the manufacturer has no way of knowing what you will be using the plane for, and subsequently how the iron would need to be honed. You may want a perfectly straight edge if working on joinery, or you may want it cambered (with a slight radius) for smoothing out small surface areas. It’s up to you, but if you do nothing else in the way of tuning or preparing your plane for use, at least take the time to properly sharpen it.  Do not skip this step!  Sharpen the iron.  Again, sharpen the iron!  Sharpen it I say!

Since sharpening is such an expansive topic in and of itself, I will leave the specific details for other posts.  What you need to know in the context of tuning, however, is that any plane, new or old, requires initial sharpening and honing.  At a minimum, new plane irons need to have their un-beveled side honed flat and polished to at least 4000 grit and preferably 8000 grit.  You don’t need to fuss with the entire surface; just the first 1/8” to 1/4” along the cutting edge will do.  You also need to put a final honing on the bevel edge itself.  It may look sharp, but it needs to be honed, again, to at least 8000 grit.  The goal is to get your cutting edge to as close as possible to a zero degree radius.

Sharpening is too often the deal breaker that dissuades woodworkers from trying hand tools.  This in unfortunate, for it requires little monetary investment to get started, is not particularly difficult to learn, and can be accomplished rather quickly with surprisingly good results.  For detailed information on sharpening, I recommend investing in one of the outstanding books on the subject by Ron Hock or Leonard Lee.   Chris Schwarz has also written a number of fantastic articles on sharpening plane irons.

Step 5 – Final Adjustments

Now that you’ve finished tuning and sharpening your plane, it’s time to put it all back together and adjust it for use.  Hopefully, you have a better understanding of what each part does and how they all function together.  This will make adjusting it for use, and while in use, more intuitive and fluid.

A few points of consideration…

The adjustable mouth plate on the Stanley no. 9-1/2. The mouth opening is adjusted by loosening the knob and rotating the eccentric throat lever left or right (to open or close the mouth).

The adjustable mouth plate on the Stanley no. 9-1/2. The mouth opening is adjusted by loosening the knob and rotating the eccentric throat lever left or right (to open or close the mouth).

While the frog’s position on bench planes is adjustable, meaning you can shift if forward to decrease the size of the mouth opening or backward to increase the size of the opening, many (but not all) block planes have adjustable mouths.  Use a larger mouth opening for thicker cuts, and a smaller mouth opening for fine shavings.  For details on this please see my post on adjustable mouth planes.

Holding the plane upside down, and looking down the sole at a low angle, lower the iron until it just begins to appear through the mouth – just a whisper.  Note that it’s not unusual for there to be quite a bit of slop in the wheel that lowers and raises the iron, as much as a full turn or two.  Just turn it until you begin to feel resistance. Make any lateral adjustments necessary using the lateral adjustment lever if your plane has one (some do and some don’t). If yours doesn’t, just tap the side of the iron with a small hammer to properly align it. I use a brass hammer so as not to mushroom the iron’s edge, but what you use is up to you. Turn it upright and make a test pass on a piece of scrap wood.  If the plane digs in, back off the depth just a bit.  If it misses entirely, lower the iron a little.  You will quickly get a feel for when it’s ‘right,’ as evidenced by the rewarding ‘thwack’ sound a plane makes when it cuts a perfect curl.

Tuning a hand plane is not a difficult endeavor.  Once practiced, the whole process can be accomplished in about a half hour, even less depending on the tool. Rather than view it as an unpleasant chore, I actually enjoy it, especially later in the evening when the dust has settled and the world is quiet.  Pour yourself a measure (or two) of your favorite Kentucky brown, put on some music of choice, and saddle up to your work bench.

276 SB18 Type 15 Post 9

Stanley Bailey no. 18, c. 1936-42

 ***

Tools shown in the photos were returned to functional condition by Virginia Toolworks using museum quality archival preservation techniques.  Sharpened and tuned for use, every tool is fully tested and adjusted until perfect.

Tool Profile – E. C. Stearns no. 13 Flexible Sole Spokeshave

318 Stearns13 1900-1930 Post 1

E. C. Stearns no. 13 Flexible Sole Spokeshave, c. 1900-1930 (from the Virginia Toolworks collection)

The E. C. Stearns No. 13 flexible sole spokeshave is a rare bird. The flexible bottom of this patented design makes this spokeshave quite unique. Patented by Herbert Coe on March 27, 1900 (and marked as such), this “universal spokeshave” features a flexible spring-like steel bed that can be adjusted to shave flat surfaces, convex curves, and concave curves.

Stearns only produced this spokeshave for about 30 years – from 1900 until around 1930. Featuring a 2-1/8″ iron and a 10″ handle span, it was the only flexible sole spokeshave sold by any of the major American manufacturers. It was very expensive for Stearns to make, cost more than twice as much as standard spokeshaves of the day, and was therefore never very popular with the tool buying public. Relatively few were produced making it quite a rare find today.

318 Stearns13 1900-1930 Post 6 318 Stearns13 1900-1930 Post 3 318 Stearns13 1900-1930 Post 4

With its brass framed lever cap contrasting the dark japanned frame, the no. 13 is an extraordinarily striking spokeshave, and the one shown from the Virginia Toolworks collection is in remarkable condition. Far too valuable and rare to be used, it is highly desired by collectors and a must-have for any serious spokeshave collection.

Stearns 13 Coe US646262-0

Coe Patent, no. 646262, Mar. 27, 1900

 ***
