Setting Up and Tuning a Block Plane

April 20, 2015 5 Comments

165 SB9.5 Type 12 Post1

Stanley Bailey no. 9-1/2, c. 1952-55 ~ one of the most popular block planes of all time

As a follow up to an earlier post about setting up and tuning bench planes, this one will focus solely on block planes. Some of the information is taken directly from that post, so if you’ve read it, it may sound familiar.

On to Setting Up Those Block Planes…

It’s no surprise that so many ‘modern’ woodworkers, especially those used to plug-and-play electric tools, eschew anything that requires sharpening, let alone tuning and fettling to make it work properly.  But the fact is, whether 100 years old or brand spanking new, virtually all planes benefit from some degree of tuning to bring them to their full potential.  Fortunately, this is not a difficult proposition, and actually aids in better understanding how the tool functions and how to get the most out of it.

Below are the basic steps for setting up and tuning a block plane for use.  Block planes tend to be less complicated than bench planes, but there are still many variations, both new and used. I’m purposefully keeping it fairly generic, so some interpretation may be necessary when applying the concepts to the tool in front of you.  But don’t worry, there are no tool police surveilling workshops and garages.  Feel free to skip a step if you don’t think it’s relevant or needed.

Step 1 – Soles Need Saving

I’m not a stickler when it comes to flattening the sole of a plane.  After owning hundreds and using dozens of planes over the years, it’s fairly rare to come across one with a sole so warped, cupped, or bowed that it’s unusable.  If you happen upon one that is truly unusable, my advice is to return it, sell it, or throw it away.  The only possible exceptions are block planes, which are pretty easy to flatten due to their smaller size.  Bench planes are far more difficult, especially the larger ones.  You can take them to a machine shop and have them milled or lapped flat, but forget trying to flatten them yourself with sandpaper unless the problem is very minor.

165 SB9.5 Type 12 Post5

The sole of this plane was lapped by hand using a granite surface plate

If you do decide to lap your plane’s sole flat, you’ll need a dead flat substrate.  The cast iron bed of a table saw or jointer works well, or if you don’t have one of those available and want to keep it on the cheap, a piece of 12” x 12” or larger granite surface plate will work for block planes.  Just make sure you retract the blade and tension the lever cap as you would in actual use.  This puts the correct stress on the plane body.  I start with 60 grit and progress up to about 320.  Removing high spots (convexity) is more critical than low spots (concavity).  Keep in mind that you don’t even need the entire sole dead flat.  As long as you have smooth contact at the toe, around the mouth, and at the heel, the plane will work just fine.

Vintage planes often have raised dings from bouncing around in tool boxes, especially along the edges, toe or heel.  A flat mill file makes very quick work of these minor problems.  Finally, some woodworkers file a very small 45 degree chamfer along each edge of the sole.  This is completely optional, but helps prevent inadvertent gouges when using the plane should you tip it slightly.  I’ve seen some Stanley planes from the mid 20th century that appear to have been made that way at the factory.

Step 2 – Flatten ‘dem Frogs

The hole in the iron straddles the lateral adjustment pivot disc and seats against the tiny frog where it engages the tiny pins on the height adjustment lever mechanism

The hole in the iron straddles the lateral adjustment pivot disc and seats against the tiny frog where it engages the tiny pins on the height adjustment lever mechanism

Block planes do not typically have removable frogs like bench planes, but there are some exceptions, mainly on some of the specialty and low angle planes where part of the frog moves with the iron when adjusting depth of cut. Either way, the function of the frog is the same on all planes. It provides a secure platform on which the iron is supported.  In order for the plane to shave wood correctly, there must not be any movement (wobble, play, rocking, etc.) to the iron.  It must be firmly seated against the frog, so the face of the frog must be as flat and secure as possible. This platform on most block planes is frequently very small, especially when compared to bench planes. Click on the photo to the right and you can see the frog is less than 1/2 square inch.

Since the frog on your block plane is typically not removable, you only need to touch up the seat with a firm sanding block to ensure it is flat.  Also, because the flat sloped area behind the mouth on the plane’s base provides much of the forward support for the iron, it needs to be flat too.  Unfortunately, it’s hard to get to, and since you don’t want to enlarge the mouth at all, just a touch using a small piece of angled wood with fine sandpaper wrapped around it is about as far as you want to take it. Thankfully, this is all that is usually needed to remove old crud. A Dremel or quality flexible shaft tool with a wire wheel brush will also work if the problem is limited to dirt and light corrosion.  Finally, as on the bench plane, clean the threads on all the hardware and add a little light oil to help retard moisture and rust.

Step 3 – Lever Caps (This is not a drinking game…)

18 cap 4

Just the leading edge to the underside of the lever cap at the bottom of the photo needs to be flattened. This photo, taken before flattening, shows the edge to be a little rough, which will compromise flush contact with the iron.

Block planes don’t have cap irons, so the lever cap plays a more important role.  Use your coarse sharpening stone or take a fine file to the back side and remove any rough spots, giving close attention to the leading contact edge.  This is most important on block planes with cast iron hooded style lever caps, such as the old Stanley 9-1/2.  The back sides of these caps are notoriously rough and unfortunately japanned. You don’t need to remove all the japanning, but you do want to get a smooth line of contact down front where it touches the iron along the front edge.  File it smooth and give it a couple of swipes across your 1000 grit stone. If your plane uses one of the nickel plated knuckle style lever caps, just flatten the bottom of the front edge in a similar fashion.

Step 4 – I Pity the Fool Who Don’t Sharpen His Tool!

The iron has been sharpened with a small 2 to 3 degree secondary bevel added (the dark line at the very edge)

The iron has been sharpened with a small 2 to 3 degree secondary bevel added (the dark line at the very edge)

The simple fact is, even with brand new planes, the irons require final honing before use.  This is not due to some lack of attention on the part of manufacturers.  Irons are provided this way on purpose, since the manufacturer has no way of knowing what you will be using the plane for, and subsequently how the iron would need to be honed. You may want a perfectly straight edge if working on joinery, or you may want it cambered (with a slight radius) for smoothing out small surface areas. It’s up to you, but if you do nothing else in the way of tuning or preparing your plane for use, at least take the time to properly sharpen it.  Do not skip this step!  Sharpen the iron.  Again, sharpen the iron!  Sharpen it I say!

Since sharpening is such an expansive topic in and of itself, I will leave the specific details for other posts.  What you need to know in the context of tuning, however, is that any plane, new or old, requires initial sharpening and honing.  At a minimum, new plane irons need to have their un-beveled side honed flat and polished to at least 4000 grit and preferably 8000 grit.  You don’t need to fuss with the entire surface; just the first 1/8” to 1/4” along the cutting edge will do.  You also need to put a final honing on the bevel edge itself.  It may look sharp, but it needs to be honed, again, to at least 8000 grit.  The goal is to get your cutting edge to as close as possible to a zero degree radius.

Sharpening is too often the deal breaker that dissuades woodworkers from trying hand tools.  This in unfortunate, for it requires little monetary investment to get started, is not particularly difficult to learn, and can be accomplished rather quickly with surprisingly good results.  For detailed information on sharpening, I recommend investing in one of the outstanding books on the subject by Ron Hock or Leonard Lee.   Chris Schwarz has also written a number of fantastic articles on sharpening plane irons.

Step 5 – Final Adjustments

Now that you’ve finished tuning and sharpening your plane, it’s time to put it all back together and adjust it for use.  Hopefully, you have a better understanding of what each part does and how they all function together.  This will make adjusting it for use, and while in use, more intuitive and fluid.

A few points of consideration…

The adjustable mouth plate on the Stanley no. 9-1/2. The mouth opening is adjusted by loosening the knob and rotating the eccentric throat lever left or right (to open or close the mouth).

The adjustable mouth plate on the Stanley no. 9-1/2. The mouth opening is adjusted by loosening the knob and rotating the eccentric throat lever left or right (to open or close the mouth).

While the frog’s position on bench planes is adjustable, meaning you can shift if forward to decrease the size of the mouth opening or backward to increase the size of the opening, many (but not all) block planes have adjustable mouths.  Use a larger mouth opening for thicker cuts, and a smaller mouth opening for fine shavings.  For details on this please see my post on adjustable mouth planes.

Holding the plane upside down, and looking down the sole at a low angle, lower the iron until it just begins to appear through the mouth – just a whisper.  Note that it’s not unusual for there to be quite a bit of slop in the wheel that lowers and raises the iron, as much as a full turn or two.  Just turn it until you begin to feel resistance. Make any lateral adjustments necessary using the lateral adjustment lever if your plane has one (some do and some don’t). If yours doesn’t, just tap the side of the iron with a small hammer to properly align it. I use a brass hammer so as not to mushroom the iron’s edge, but what you use is up to you. Turn it upright and make a test pass on a piece of scrap wood.  If the plane digs in, back off the depth just a bit.  If it misses entirely, lower the iron a little.  You will quickly get a feel for when it’s ‘right,’ as evidenced by the rewarding ‘thwack’ sound a plane makes when it cuts a perfect curl.

Tuning a hand plane is not a difficult endeavor.  Once practiced, the whole process can be accomplished in about a half hour, even less depending on the tool. Rather than view it as an unpleasant chore, I actually enjoy it, especially later in the evening when the dust has settled and the world is quiet.  Pour yourself a measure (or two) of your favorite Kentucky brown, put on some music of choice, and saddle up to your work bench.

276 SB18 Type 15 Post 9

Stanley Bailey no. 18, c. 1936-42

 ***

Tools shown in the photos were returned to functional condition by Virginia Toolworks using museum quality archival preservation techniques.  Sharpened and tuned for use, every tool is fully tested and adjusted until perfect.

Filed under Hand Planes, Sharpening, Tools, Woodworking Tagged with , , , , , , ,

Tune Your Block Plane Tonight

January 19, 2013 2 Comments

Following the popularity of the recent post, Tune Your Hand Plane Tonight, let’s now talk about block planes.  Much of the information will be the same, but block planes are different enough to warrant a dedicated set of instructions.  Besides, since there are probably more block planes owned today and sitting unused in garages and workshops than there are bench planes, they deserve a little love of their own.

As I’ve written before, I have a particularly strong affinity for block planes.  They are  the sexy two seater sports cars of the hand plane world – quick, nimble, and fun to handle.  But more than that, they are extraordinarily versatile and practical for many handy-man chores around the house, as well as indispensable tools in the wood shop.  Even the most ardent power tool user, and certainly the average homeowner, should have at least one or two block planes in his or her arsenal.

Keeping a block plane in good working order is quite easy.  Tuning one for optimal performance is a simple proposition that can be accomplished in an hour or so, if not less.  As I did with the bench plane instructions, I’m going to assume that your block plane is already in a mechanically functional condition and doesn’t require a full blown restoration.  For that level of detail, I recommend reading the posts under Preservation on the menu bar at the top of the page.  Since there are multiple mechanical styles and configurations of block planes, I’m going to try to keep it fairly generic, so you may need to interpolate for your specific plane.

Step 1 – Pour Drink of Preference

High-West-WhiskeyFor working on block planes, let’s go with something a little more exotic than the bourbon we enjoy with our bench planes.  I recommend Rendezvous Rye from the High West distillery.  It is… complex and superb.  Of course, what you drink is up to you, but moderation is certainly recommended, for while you won’t be working with electrically powered tools, you will be handling very sharp objects.  (5 minutes)





Step 2 – Disassembly & Cleaning

064 SB9.5 -Type 18 Post8The second step is to completely disassemble your plane and clean all the parts.  Using screwdrivers of the appropriate size, remove all the parts – lever cap, cap bolt, lateral lever, eccentric lever, adjustment screws, knobs, etc.  If you’re not completely familiar with what and where everything goes or are worried you might have trouble putting it all back together, take before pictures or notes.

Once disassembled, brush off all the sawdust and dirt.  If the filth is excessive, use a toothbrush and orange degreaser (available at the hardware or grocery store).  Also take a few minutes to clean the threads and slots on all the screws and bolts.  I use a small wire bristle brush with a little turpentine or light penetrating oil like WD-40. Once cleaned, wipe them down and set them out of the way so they don’t attract grit.  (10 minutes)

Step 3 – Hello Froggy

160 SAR5306 Post7Unlike frogs on bench planes, the frogs on block planes are usually fixed platforms cast into the body of the plane.  The top of the frog provides a small platform for the iron to sit, while the flat area behind the mouth offers support near the cutting edge.  Both surface areas should be clean of dirt and debris.  A toothbrush or brass bristle brush with degreaser works well, although you can also use WD-40 or turpentine.  The face of the frog is one of the more critical surfaces of the plane.  Once clean, fit the iron against the frog and verify that it sits flat and securely with no wobble.   You don’t want any wiggle or movement, so any high spots or irregularities in the casting need to be carefully filed or sanded flat.   (5-15 minutes)

Step 4 – Adjustimability of the Mouth

165 SB9.5 Type 12 Post7Many “premium” models of block planes feature an adjustable mouth opening.  This typically means the front section of plane’s sole is a separate piece than can be positioned toward the toe (thus opening the size of the mouth) or closer to the iron (closing the size of the mouth opening).   It is necessary to periodically remove this piece to clean out sawdust that has accumulated, and to clean and lubricate the tracks upon which the plate rides.  If it doesn’t adjust easily forward and back, it needs attention.

Since you’ve already disassembled the plane, make sure both the plate itself and the receiver in which it sits are both clean of debris.  Brush the edges of the plate and tracks of the receiver with a brass or wire bristle brush lubricated with light oil or turpentine.  Fit the plate in place and verify that it moves fairly freely.  It is not normally necessary (nor desirable) to sand the edges of the plate to make it move more easily, although this is sometimes necessary if the plane is vintage and the plate a replacement.  If you decide metal removal  is absolutely necessary, be careful and go very slow.  You can’t un-sand.  (5-15 minutes)

Step 5 – Inspect the Sole

165 SB9.5 Type 12 Post5Take a look at the sole (bottom) of the plane.  Inspect for dents or dings with raised points around the edges that might dig into your wood surface when planing.  If you find any, carefully file them flat with a mill file, followed by a little 220 grit sandpaper.  Unlike bench planes, which have a lot more surface area, flattening the sole of a block plane is a relatively painless process.  Although not usually a critical requirement, flattening the bottom will often provide superior results in use.

First, temporarily re-install the iron and lever cap and tighten to normal pressure.  This ensures the body will be under the same stress (and any possible distortion) as when in actual use.  Working against a dead flat substrate such as a granite sharpening block or the iron bed of a table saw,  start with 60 grit and go through progressively finer grits until you are satisfied that the toe, heel, and areas just in front of and behind the mouth are all completely flat and smooth.  I usually stop with 320 grit.  Aluminum Oxide sandpaper is my preference. If you don’t want to invest in a granite sharpening block, granite floor tiles from your local home center are just the right size and cost around $5 each.  (30-45 minutes depending)

Step 6 – Time to Sharpen

Sharpening SetupYes, sharpening is the step everyone loves to hate, the step that prevents so many people from ever trying a hand plane.  The trick is not to wait until you need to use the tool.  Make time for sharpening in advance, and make a party out of it!  Okay , so maybe not a party, but there is something truly rewarding about getting an edge you can shave with.  It’s relaxing and I really do enjoy it.  Since this is not a sharpening tutorial, I’ll leave the particulars on methodology to another post or reference.  But if you do nothing else, take the time to put a keen edge on your plane’s iron.  A 25 degree bevel works perfectly on most block planes – both low angle and standard angle models.  The angle of the plane’s bed varies on these models, usually either 12 degrees for low angle planes or 20 degrees for standard angle planes.  Add the 25 degree bevel and you end up with a 37 degree low angle of cut, or a 45 degree standard angle of cut (same as bench planes).  Add a micro bevel if you want, and don’t forget to polish the unbeveled back edge. (30 minutes)

Step 7 – Lubrication

Pure Oil 1Lubrication is a good idea, but should be done sparingly since oil attracts dirt and grit.  I add just a drop of light oil to the threads of all the bolts and screws before re-installing them.  I also add a drop to all the moving/adjustment parts, but wipe them with a rag afterward so that only a light film is left.  They certainly don’t need to be dripping.

Some guys believe in waxing the sole.  Nothing wrong with that as long as you don’t use a silicone based wax.  However, I just wipe down all exterior surfaces with a little Jojoba oil for storage.  (5 minutes)

Step 8 – Assemble, Adjust, Cut

187 SB18 Type 14 Post1Time to put it all back together.  Re-attach the eccentric lever and front plate (if it has one), adjustment wheel, lateral lever, knobs, etc. and all related hardware.  Carefully put the iron and cap iron assembly in place being careful not to fould the newly sharpened edge, and install the lever cap.  It should lock down securely, but not so tight as to inhibit raising and lowering the iron.  Adjust the front plate (if it has one) forward or backward as needed for the type of planing you intend to do (again, see open vs closed mouth).  Once set, lower the iron into the mouth to take your first test cut.   All of your hardware and adjustment mechanisms should move freely and smoothly. (10-15 minutes)

Unless you run into an unexpected problem, the entire tuning and sharpening process can be completed in about 1 to 2-1/2 hours, and even quicker if you’re tuning a new plane or re-tuning a plane that has already been tuned or well cared for.  It’s easy, rewarding, and builds both knowledge and confidence in your ability to master hand and block planes.

***

Filed under Hand Planes, Preservation, Sharpening, Tools Tagged with , , , , , , , , ,

Tune Your Hand Plane Tonight

January 17, 2013 Leave a comment

Among the most frequent web searches that lead people to this site come from those looking for information on tuning a hand plane.  Admittedly, for those new to the craft, or at least new to using hand tools, the prospect of setting up and fine tuning a hand plane is daunting.  After all, the nomenclature of parts is bewildering, the functional mechanics are an exercise in geometry and physics, and then there’s that whole issue with sharpening.  It’s no wonder so many people would rather spend an evening prepping for a colonoscopy.

But yea I say unto you, fear not!  Tending to a neglected (or new) hand plane is both relaxing and rewarding, and in most cases takes just an hour or two.  Best of all, the gratification is instant, the rewards immediate.

Now in the interest of keeping things simple, I’m going to assume that your plane is already in a mechanically functional condition and doesn’t require a full blown restoration.  For that level of detail, I recommend reading the posts under Preservation on the menu bar at the top of the page.  I’m also going to focus solely on bench planes.  I’ll cover black planes in a later post.  For simple tuning in one evening, read on…

Step 1 – Pour Drink of Preference

PVW-trio-4What you drink is up to you, and moderation is certainly recommended, for while you won’t be working with powered tools, you will be handling very sharp objects.  I personally prefer a finer bourbon, perhaps Maker’s 46 or Elijiah Craig 18 year, or if I’m in a particularly festive mood, a little Jefferson Presidential Select 17 year or Pappy Van Winkle.  Either way, begin by putting on some relaxing music and have a drink.  (5 minutes)



Step 2 – Disassembly & Cleaning

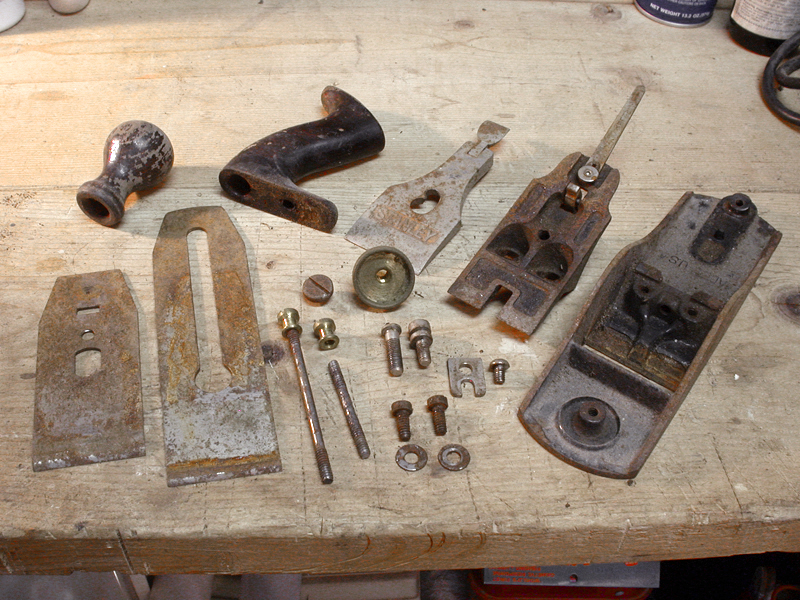

Disassembled Plane, Ready for TuningThe second step is to completely disassemble your plane and clean all the parts.  Using screwdrivers of the appropriate size, remove all the parts, screw, bolts, washers, etc.  If you’re not completely familiar with what and where everything goes or are worried you might have trouble putting it all back together, take pictures or notes.  Or just pay attention; it’s not that complicated for heaven’s sake.

Once disassembled, brush off all the sawdust and dirt.  If the filth is excessive, use a toothbrush and orange degreaser (available at the hardware or grocery store).  Also take a few minutes to clean the threads and slots on all the screws and bolts.  I use a small wire bristle brush with a little turpentine or light penetrating oil like WD-40. Once cleaned, wipe them down and set them out of the way so they don’t attract grit.  (10 minutes)

Step 3 – Inspect the Sole

Stanley No. 7 Jointer PlaneTake a look at the sole (bottom) of the plane.  Put a straight edge against it if it makes you feel better.  Once you’ve convinced yourself that it’s flat enough (which it undoubtedly is), set it aside and have another drink.  Seriously, after owning hundreds and using dozens of planes over the years, I’m convinced it’s rare to come across one with a sole so warped, cupped, or bowed that it’s unusable.  If there are any dents or dings with raised points around the edges that risk digging into your wood surface, carefully file them flat with a mill file, followed by a little 220 grit sandpaper.  You can also use the sandpaper or steel wool to remove any heavy crud – I suggest lubricating it generously with WD-40, Mineral Spirits, or Turpentine.  Working against a dead flat substrate such as a granite or the iron bed of a table saw is recommended.  Go easy.  No need to overdo it; you just want it to be clean and smooth.  (5-30 minutes depending)

Step 4 – Address the Frog

Lap frog face on edge of stone to protect yokeFirst inspect the seat for the frog on the top side of the plane’s base.  This is the area of contact where the frog attaches to the body of the plane.  The mating surfaces must be clean and flat.   Use a toothbrush with the degreaser.  If there is stubborn crud to be removed, use a brass bristle brush.  If the crud is really bad, you can use a small steel brush, but be very careful to to damage the surrounding finish.  Mating surfaces on the frog itself should also be cleaned in the manner described above.

The face of the frog is one of the more critical surfaces of the plane.  It needs to be as flat as you can get it so the iron sits completely flush against.  You don’t want any wiggle or movement, so any high spots or irregularities in the casting need to be filed or sanded flat.  I go back to my granite surface and sandpaper for this.  Taking care not to damage the tip of the yoke that engages the iron and cap/iron, carefully sand the face surface of the frog until it is as flat as possible.  Change directions periodically to keep it even.  You only need to do enough to ensure the iron sits flat against it.  (15-30 minutes)

Step 5 – Polish the Cap Iron

Cap IronThe leading edge of your cap iron (also called the chip breaker) will need a little attention.  Flatten the leading edge of the cap iron where it contacts the iron so that it seats completely flush against it.  You don’t want any gaps that shavings can slip through.  While you’re at it, polish the top side of that leading edge as well (the hump) to make it nice and smooth.  Less friction makes the shavings pass over it more easily, helping to prevent clogs.   The smoother the better, but don’t obsess over this step.  (10 minutes)

Step 6 – Sharpen the Iron

Sharpening SetupYes, I know, the step everyone loves to hate.  Even for me, it’s often a task that I procrastinate over, but once I get going, I actually enjoy it.  Since this is not a sharpening tutorial, I’ll leave the particulars on methodology to another post or reference.  But if you do nothing else, take the time to put a keen edge on your plane’s iron.  A 25 degree bevel works perfectly on bench planes; add a micro bevel if you’re into that, and don’t forget to polish the unbeveled back edge. (30 minutes)

Step 7 – Lubrication

Pure Oil 1Lubrication is a good idea, but should be done sparingly since oil attracts dirt and grit.  I add just a drop of light oil to the threads of all the bolts and screws before re-installing them.  I also add a drop to all the moving/adjustment parts, but wipe them with a rag afterward so that only a light film is left.  They certainly don’t need to be dripping.

Some guys believe in waxing the sole.  Nothing wrong with that as long as you don’t use a silicone based wax.  However, I just wipe down all exterior surfaces with a little Jojoba oil for storage.  (5 minutes)

Step 8 – Assemble, Adjust, Cut

Stanley Bailey no. 5, Type 17 - WWII VintageTime to put it all back together.  Re-attach the frog and all its related hardware first, but don’t tighten just yet.   Put the knob and tote back on if you took it off.  Carefully put the iron and cap iron assembly in place and install the lever cap.  It should lock down securely, but not so tight as to inhibit raising and lowering the iron.  Adjust the frog forward or backward as needed until the iron’s cutting edge is positioned appropriately for the type of planing you intend to do (see open vs closed mouth).  Once set, tighten down the frog and lower the iron into the mouth to take your first test cut.   All of your hardware and adjustment mechanisms should move freely and smoothly. (10-15 minutes)

Unless you run into an unexpected problem, the entire tuning and sharpening process can be completed in about 1-1/2 to 2-1/2 hours, and even quicker if you’re tuning a new plane or re-tuning a plane that has already been tuned or well cared for.  It’s easy, rewarding, and builds both knowledge and confidence in your ability to master hand planes.

***

Wait!  What about the tote and knob, you ask?  You can read all about their care and repair right here.

Filed under Hand Planes, Preservation, Sharpening, Tools Tagged with , , , , , , , , , , , ,

Open vs. Closed? Mouth vs Throat? – The Adjustable Plane Facts

July 28, 2012 1 Comment

Adjustable Mouth?  Open or Closed Throat?  Say what?

What’s all the ruckus about adjustable mouth planes? What are they? Do I need one? How do I use it? What’s the difference between adjustable throat planes and adjustable mouth planes?  Good grief, it’s enough to give any new galoot a headache!

Stanley no. 60 with mouth open on left; Stanley no. 18 with mouth closed on right.

What’s the difference?  To clear up the confusion, let’s start with the nomenclature. Both ‘adjustable throat’ and ‘adjustable mouth’ actually refer to the same feature. Both terms are used interchangeably, which is confusing and in my opinion, technically incorrect. The mouth is the rectangular opening that you see when looking at the bottom of the plane. The throat is the area above the mouth on the top side of the plane. The part that is adjustable is the mouth, not the throat.  That said, even Stanley wasn’t consistent in its terminology, listing ‘adjustable throat‘ planes in their catalogs some years and ‘adjustable mouth‘ planes other years.  Far be it from me to argue the point one way or the other, but for the rest of this post, I’m sticking with adjustable mouth.

What is it?  An adjustable mouth on a plane means that the size of the mouth opening can be adjusted, i.e., opened to make it larger or closed to make it smaller. Typically, this is accomplished by sliding the toe section of the plane forward (away from the iron) to increase the size of the mouth opening, or backward toward the iron to decrease it.

Not all planes have adjustable mouths. In the world of vintage tools, adjustable mouths were most commonly featured on the various manufacturers’ premium lines of block planes and a few of their specialty planes. Modern manufacturers like Lie Nielsen and Veritas understand the value of adjustable mouths to woodworkers and feature them on many of their bench planes as well their block planes.

Why do I need it?  The value of having an adjustable mouth on a plane is the ability to increase or reduce the space between the leading edge of the mouth opening and the cutting edge of iron. If you’re making a heavy cut and taking thicker shavings, you want more open space in front of the iron for the shaving to pass. If you’re making a fine cut, taking thin shavings, you need less space in front of the iron.  In fact, you want the opening to be just marginally larger than the thickness of the shaving.

How do I use it?  In practice, the leading edge of the mouth presses down on the wood fibers as you make a cut. Having a ‘fine set’ to your plane (meaning a closed mouth and very shallow depth of cut) keeps the wood in front of the iron tightly compressed.  This enables a very thin shaving with less chance of tear out, in which the wood fibers split well ahead of and below the cut. Opening the mouth accomplishes just the opposite. With less compression, the iron is able to take a thicker cut, and the larger opening allows the shaving to pass through unobstructed up into the throat area.

Naturally, the size of the mouth opening is only half of the equation – you also need to decide how far down to extend the iron based on how deep you want to cut. If you try to take a heavy a cut with the mouth too tightly closed, the shaving will be too thick to pass through the opening and will quickly clog the mouth opening or simply come to a screeching halt.  This effect can be more or less pronounced depending on the type of wood you are working on.

The trick, of course, is finding the right balance between set of the iron and opening of the mouth, but this is truly not as difficult as it might sound. A little trial and error will quickly build experience and give you a ‘feel’ for how to set your plane for the cut you desire. Once you have it set appropriately for what you’re trying to accomplish, the results will be superior to what you would get from a plane with a fixed aperture mouth, which lacks the flexibility for making fine adjustments to the cut.

As a final thought, it is worth pointing out that many planes without adjustable mouths can still be adjusted.  Virtually all bench planes have adjustable frogs.  Moving the frog forward or backward decreases or increases the size of the mouth opening, accomplishing the same goal as an adjustable mouth, even if the process is a little more involved.  Still, that is precisely why Stanley added the frog adjustment feature to their planes in 1907.

Unlike bench planes, the frogs of block planes are fixed, so unless they have an adjustable mouth, you’re stuck with the fixed size opening.  This is why adjustable mouth block planes are more highly regarded and valued by woodworkers.

Common* Vintage Planes with Adjustable Mouths

Stanley nos. 9-1/2, 15, 16, 17, 18, 19 standard angle block planes
Stanley nos. 60, 60-1/2, 65, 65-1/2 low angle block planes
Stanley no. 62 low angle jack plane

Millers Falls nos. 16, 17, 26, 27, 36, 37 standard angle block planes
Millers Falls nos. 46, 47, 56, 57 low angle block planes

Sargent nos. 306, 307, 1306, 1307, 4306, 4307, 5306, 5307 standard angle block planes
Sargent nos. 606, 607, 1606, 1607 low angle block planes
Sargent no. 514 low angle jack plane

Modern Plane Makers

Lie-Nielsen – makes block plane models with adjustable mouths
Veritas/Lee Valley – makes both block and bench planes with adjustable mouths
Stanley – makes modern variations of their vintage counterparts
Wood River/Woodcraft – makes block plane models with adjustable mouths

* This is not a complete list, but includes the most common planes for use.

For more information on plane nomenclature, please refer to the Plane Terminology page for a full dictionary of plane parts and terms.

***

Filed under Hand Planes, Tools Tagged with , , , , , , , , , ,

Setting Up and Tuning a Hand Plane

June 9, 2012 17 Comments

In today’s culture of instant gratification and disposable everything, most of us are conditioned to expect the stuff we buy to just work right out of the box.  Even the caveat “some assembly required” is printed on the packaging of many items, just to make sure there is no misunderstanding.  Published reviews of shop tools invariably dedicate an entire section to the experience of unpacking, cleaning, and setting up the tool for use, before the subject of functionality is even broached.  Whether a realistic expectation or not, once a tool is put together, most people want no further inconvenience beyond plugging it in and turning it on.

It’s no surprise that so many ‘modern’ woodworkers, especially those used to plug-and-play electric tools, eschew anything that requires sharpening, let alone tuning and fettling to make it work properly.  But the fact is, whether 100 years old or brand spanking new, virtually all hand planes benefit from some degree of tuning to bring them to their full potential.  Fortunately, this is not a difficult proposition, and actually aids in better understanding how the tool functions and how to get the most out of it.

Below are the basic steps for setting up and tuning a hand plane for use.  Since there are so many variations of planes, both new and used, I’m purposefully keeping it fairly generic, so some interpretation may be necessary when applying the concepts to the tool in front of you.  But don’t worry, there are no tool police surveilling workshops and garages.  Feel free to skip a step if you don’t think it’s relevant or needed.

Step 1 – One Righteous Sole
I’m not a stickler when it comes to flattening the sole of a plane.  After owning hundreds and using dozens over the years, it’s fairly rare to come across a plane with a sole so warped, cupped, or bowed that it’s unusable.  If you happen upon one that is unusable, my advice is to return it, sell it, or throw it away.  The only possible exceptions are block planes, which are pretty easy to flatten due to their smaller size.  Bench planes are far more difficult, especially the larger ones.  You can take them to a machine shop and have them milled or lapped flat, but forget trying to flatten them yourself with sandpaper unless the problem is very minor.

Good luck trying to lap this 22″ bad boy!

If you do decide to lap your plane’s sole flat, you’ll need a dead flat substrate.  The cast iron bed of a table saw or jointer works well, or if you don’t have one of those available and want to keep it on the cheap, a piece of 12” x 12” or larger granite surface plate or a marble tile from your home center will work for block planes, and typically costs less than $5.00.  Just make sure you retract the blade and tension the lever cap as you would in actual use.  This puts the correct stress on the plane body.  I start with 60 grit and progress up to about 320.  Removing high spots (convexity) is more critical than low spots (concavity).  Keep in mind that you don’t even need the entire sole dead flat.  As long as you have smooth contact at the toe, around the mouth, and at the heel, the plane will work just fine.

Vintage planes often have raised dings, especially along the edges, toe or heel.  A flat mill file makes very quick work of these minor problems.  Finally, some woodworkers file a very small 45 degree chamfer along each edge of the sole.  This is completely optional, but helps prevent inadvertent gouges when using the plane should you tip it slightly.  I’ve seen some Stanley planes from the mid 20th century that appear to have been made that way at the factory.

Step 2 – Flat Frogs Make Better Mates
Bench planes have removable frogs.  Block planes do not.  However, the function of the frog is the same – it provides a secure base to support the iron.  In order for the plane to shave wood correctly, there must not be any movement (wobble, play, rocking, etc.) to the iron.  It must be firmly seated against the frog, so the face of the frog must be as flat as possible.

On your bench plane, unscrew and remove the frog and all of its hardware, including the lever cap bolt on the front and the adjustment plate and screw on the rear.  Taking care not to damage the tip of the yoke that engages the iron and cap/iron, carefully sand the face surface of the frog until it is as flat as possible. I use the edge of my granite block for this, and change direction often to ensure I get a surface as flat as possible.  No need to obsess over it, you just need the iron to seat firmly against it.  While your at it, touch up the mating surfaces on the bottom of the frog where it attaches to the plane base.  Also take a moment to touch up the mating surfaces on the plane body too.  You want the frog to seat as firmly as possible to the body.

Lap frog face on edge of stone to protect yoke

On vintage planes, thoroughly clean all the threads of the screws and bolts to remove any crud or rust, and apply a little light oil before reassembly.  This is particularly important for the large brass adjustment knob, which needs to turn freely along the full length of its bolt.

On your block plane, the frog is not removable, so you only need to touch up the seat with a firm sanding block to ensure it is flat.  Since the flat sloped area behind the mouth on the plane’s base provides much of the forward support for the iron, it needs to be flat too.  Unfortunately, it’s hard to get to, and since you don’t want to enlarge the mouth at all, just a touch using a small piece of angled wood with fine sandpaper wrapped around it is about as far as you want to take it.  Thankfully, this is all that is usually needed to remove old crud. A Dremel or quality flexible shaft tool with a wire wheel brush will also work if the problem is limited to dirt and light corrosion.  Finally, as on the bench plane, clean the threads on all the hardware and add a little light oil to help retard moisture and rust.

Step 3 – Chip Breakers, not Deal Breakers
On bench planes, the chip breaker, more accurately referred to as the Cap Iron, serves three important purposes.  1. It adds rigidity to the iron (blade). 2. It provides a small opening through which the depth adjustment mechanism engages the iron.  3. It helps ‘break’ the shavings as they rise off the cutting edge of the iron, thus preventing them from jamming up the throat of the plane.

Most cap irons, even on new planes, benefit from a little tuning to make them more efficient.  The leading contact edge, where it rests upon the edge of the iron, needs to be completely flat so that no light (or shavings) can pass between the two.  This is a simple matter of a couple of passes on a sharpening stone.  I use my 1000 grit stone as anything higher is overkill.  If you don’t have one, use whatever comparable sharpening media you have available.  Ideally, you should undercut it slightly, so just the front edge makes initial contact.  As you tighten the cap iron against the iron, it will flatten out some.  The idea is to make it completely flush so that fine shavings do not slip in between the cap iron and iron.

Cap iron with polished arch

The other tuning point on the cap iron is its forward arch.  For lowered resistance and smooth chip passage, this arch should be polished.  You can do this by hand using your sharpening stone or sandpaper.  Again, 1000 grit or thereabouts is enough.  Smoother is better, and there’s no downside to over-polishing other than the time it takes.  Once complete, you may need to remove any burr that has formed along the front edge.  I run mine edgewise (like cutting with a knife) down a piece of scrap wood.

Note that block planes do not have cap irons.

Step 4 – Pop a Lever Cap on that Sucka
While appearances and designs vary greatly, all planes have some sort of lever cap.  The lever cap provides the tension that holds the iron in place.  There’s not really a whole lot that needs to be done to the lever cap.  Just ensure that the contact edge on its back side is reasonably flat, so it makes flush contact with the cap iron on which it sits.  Wood shavings will find their way through the tiniest of gaps.  If you’re obsessive, you can polish the forward arch a little just as you did with the cap iron.  You might also add a drop of oil to the working joints to ensure smooth operation.

Bench plane and block plane lever caps

On block planes, since there is no cap iron, the lever cap plays a more important role.  Take a fine file to the back side and remove any rough spots, giving close attention to the leading contact edge.  This is most important on block planes with cast iron hooded style lever caps, such as the old Stanley 9-1/2.  The back sides of these caps are notoriously rough and unfortunately japanned. You don’t need to remove all the japanning, but you do want to get a smooth line of contact down front where it touches the iron.  File it smooth and give it a couple of swipes across your 1000 grit stone.  I like to touch up the top front edge as well, but this isn’t critical.

Step 5 – I Pity the Fool Who Don’t Sharpen His Tool!
The simply fact is, even with brand new planes, the irons require final honing before use.  This is not due to some lack of attention on the part of manufacturers.  Irons are provided this way on purpose, since the manufacturer has no way of knowing what you will be using the plane for, and subsequently how the iron would need to be honed.  If you do nothing else in the way of tuning your plane, at least take the time to properly sharpen it.  Do not skip this step!  Sharpen the iron.  Again, sharpen the iron!  Sharpen it!

Basic sharpening setup using a waterstone

Since sharpening is such an expansive topic in and of itself, I will leave the specific details for other posts.  What you need to know in the context of tuning, however, is that any plane, new or old, requires initial sharpening and honing.  At a minimum, new plane irons need to have their un-beveled side honed flat and polished to at least 4000 grit and preferably 8000 grit.  You don’t need to fuss with the entire surface; just the first 1/8” to 1/4” along the cutting edge will do.  You also need to put a final honing on the bevel edge itself.  It may look sharp, but it needs to be honed, again, to at least 8000 grit.  The goal is to get your cutting edge to as close as possible to a zero degree radius.

Sharpening is too often the deal breaker that dissuades woodworkers from trying hand tools.  This in unfortunate, for it requires little monetary investment to get started, is not particularly difficult to learn, and can be accomplished rather quickly with surprisingly good results.  For detailed information on sharpening, I recommend investing in one of the outstanding books on the subject by Ron Hock or Leonard Lee.   Chris Schwarz has also written a number of fantastic articles on sharpening plane irons. Sharpen the iron.  Again, sharpen the iron!  Sharpen it!

Step 6 – Final Adjustments
Now that you’ve finished tuning and sharpening your plane, it’s time to put it all back together and adjust it for use.  Hopefully, you have a better understanding of what each part does and how they all function together.  This will make adjusting it for use, and while in use, more intuitive and fluid.

A few points of consideration…

While the frog’s position on bench planes is adjustable, meaning you can shift if forward to decrease the size of the mouth opening or backward to increase the size of the opening, it needs to be firmly attached in whatever position you decide so that it doesn’t move when in use.  In other words, to adjust its position, you will have to loosen the screws that attach it to the base.  Without getting into detail, use a larger mouth opening for thicker cuts, and a smaller mouth opening for fine shavings.  Set the position of the frog where you want it and screw it down tight, understanding you may need to do this a couple of times before you get to just the right position.

The cap iron should be firmly screwed to the iron, leaving just a tiny edge of the iron protruding forward.  This should generally be as small as possible – 1/64” for fine shavings to 1/16” or more for heavier cuts, depending on the amount of camber on the iron. The iron/cap iron in place, the lever cap bolt should be tightened just enough to hold the iron firmly so it doesn’t slip in use, but not so tight that you can’t adjust it’s depth of cut using the large brass or steel wheel at the rear of the frog.  If that knob won’t turn, the bolt holding the lever cap is too tight.  This too, may take a couple of tries before you get the feel of it.

Holding the plane upside down, and looking down the sole at a low angle, lower the iron until it just begins to appear through the mouth – just a whisper.  Note that it’s not unusual for there to be quite a bit of slop in the wheel that lowers and raises the iron, as much as ½ to ¾ of a turn.  Just turn it until you begin to feel resistance.  Make any lateral adjustments necessary using the lateral adjustment lever that extends from the top of the frog.  Turn it upright and make a test pass on a piece of scrap wood.  If the plane digs in, back off the depth just a bit.  If it misses entirely, lower the iron a little.  You will quickly get a feel for when it’s ‘right,’ as evidenced by the rewarding ‘thwack’ sound a plane makes when it cuts a perfect curl.

On block planes, adjustments for use are a simple matter of properly tensioning the lever cap and setting the throat opening via the front adjustment plate (if the plane has one).  The same principles apply that you use in adjusting your bench planes.

Tuning a hand plane is not a difficult endeavor.  Once practiced, the whole process can be accomplished in about a half hour, even less depending on the tool.  Rather than view it as an unpleasant chore, I actually enjoy it, especially later in the evening when the dust has settled and the world is quiet.  Pour yourself a measure of Kentucky’s best brown, put on your music of choice, and saddle up to your work bench.

Stanley no. 5 Jack Plane, c. 1940s

***

Tools shown in the photos were returned to functional condition by Virginia Toolworks using museum quality archival preservation techniques.  Sharpened and tuned for use, every tool is fully tested and adjusted until perfect.

Filed under Hand Planes, Preservation, Sharpening, Tools, Woodworking Tagged with , , , , , , , , , ,

What to Look for When Buying Vintage Hand Planes

May 13, 2012 11 Comments

c. 1940s Stanley No. 5 Jack Plane

When I first started buying and collecting vintage hand planes, much of the available information I read online included ominous warnings about warped, twisted soles, unstable frogs, and mangled throats. Sounded more like a Stephen King movie than a discussion about tools! With recommendations for evaluation that involved engineering squares and feeler gauges. I was convinced that no vintage plane I purchased could ever possibly work correctly until I lapped the sole and re-machined every contact surface. It only took me suffering through flattening one or two planes to come to my senses and question just what the heck I was trying to accomplish.

Once I actually started sharpening, tuning, and using hand planes, I realized that most of these warnings were just a lot of unwarranted hooey. The vast majority of vintage planes I’ve owned and used over the years were actually just fine. Naturally, using a nice new Lie Nielsen or Veritas plane provides a noticeably different experience, but at a substantial cost premium. I’m just not there yet, and may never be. Here’s why…

The quality of the tool doesn’t contribute nearly as much to the end result as does the skill of the user. Craftsmen of 100 or so years ago made do just fine with the planes that were available. The average woodworker at the turn of the century didn’t own a micrometer or a machined straight edge. Many didn’t even use a measuring device, instead relying on dividers, marking gauges, and geometry. They used the tools and technology of the day, and produced some of the finest furniture in the world.

That’s not to say that tool quality isn’t important. Or more precisely, it’s not even so much the quality of the tool itself, but the quality of the tool’s tuning combined with proper technique that produces the desired result. As many others have pointed out before, a plane is really nothing more than a jig for holding a cutting implement at a consistent angle. With the appropriate ‘jig-o-metrics’ (tuning) applied, a properly sharpened cutting edge, and skillful application by the user, even the cheapest home center hand plane can competently get the job done. What quality of design, machining, and related workmanship gets you is ease of use and greater versatility. With tighter tolerances you get less slop and greater precision. While a high quality tool won’t improve the results of an unskilled user, it can certainly improve the results of one who has mastered its use.

All that said, there are some red flags to look for when shopping for hand planes, and with the abundance of vintage planes available on eBay, yard sales, and tool swaps across the country, there’s no reason to settle for a tool with serious problems. The challenge is knowing what is serious, and what isn’t. So let’s take it part by part. I’ll try to keep it simple.

Stanley No. 7, Lever Cap & Iron/Cap Iron

Body & Sole
Also sometimes referred to as the ‘base’ or ‘shoe,’ the body of the plane, as the name implies, is the main frame. The sole is the surface that comes in contact with the wood when using the plane. The main thing to look for on the body is cracks and/or repairs. Planes with this sort of damage are best avoided. Small chips along the top edges (cheeks) don’t affect usability, but are cosmetically undesirable. With so many planes available, why settle? The other thing to inspect on the body is the opening where the iron (blade) protrudes. It’s important that the opening, called the mouth or throat, isn’t chipped and hasn’t been repaired or enlarged through filing. The throat opening affects your ability to properly set the iron, and is one area of the plane where precision is extremely important.

Pitting is usually high on the list of problems to avoid. Again, with so many planes available, there’s no reason to settle for a tool with heavy pitting. Pitting is damage from rust that has eaten into the metal. In my experience, unless the pitting is very heavy, it doesn’t usually have much effect on a plane’s performance. Like all the normal scratches, scars, and dings from use that you’ll see, very light areas of pitting are not uncommon and are of little concern with regards to practical usability.

Some folks might disagree, but I don’t worry too much about the flatness of the sole. Having owned more than 250 vintage planes over the course of the time, I’ve only had a few that were unusable, and each of them had other issues more critical than the flatness of the bottom. Slap a ruler or straightedge against it if it makes you feel better or if you’re spending more than $75-$100 on a standard bench plane to use. However, if your need for critical tolerances is that great, I recommend you invest in a modern Lie-Nielsen or Veritas plane. They are machined to engineering grade tolerances, but you’ll pay a premium for them.

Knobs and Totes
The wooden knobs and totes (handle) on planes are frequently found with chips, cracks, and breaks. Aside from the obvious preference that they be perfect, minor damage is usually just cosmetic. Functionality is only compromised when the damage is so bad that they are unstable or inhibiting a proper grip on the plane. Breaks and cracks can often be repaired, even if the damage is severe, and replacements are abundant. If the tool is in otherwise good condition, a damaged or missing knob or tote isn’t a deal breaker for me. For more information check my post on repairing knobs and totes.

Stanley #7 Frog

Frog
The frog is the part of the plane that attaches to the top side of the base and provides an angled seat for the iron (blade), as well as a mechanism to adjust the depth and lateral positioning of the iron. I have no idea why it’s called a frog. Damage to look for is a missing lateral adjustment lever, which was a feature on the frogs of most Stanley (and other) bench planes manufactured after the mid 1880s. The lateral lever sticks up from the top of the frog and enables lateral (side to side) positioning of the iron. Every now and then this lever is missing. Ideally it should be straight and tight, although bends can be straightened and if it’s wobbly, it can be tightened by carefully tapping its rivet with a small ball peen hammer.

Broken and chipped frogs are the main concern and should be avoided. Look close at the bolt hole in the front center of the frog to make sure there are no chips around the edge. Once again, replacement frogs are fairly plentiful, but you will need to find one from the same period of manufacture to ensure proper fit since the design changed over the years.

Iron and Cap Iron
The iron, also referred to as the ‘cutter’ or ‘blade,’ is the tool’s cutting implement. The main things to look for are how much usable length remains and the condition of the surface metal. Pitted irons are not necessarily a lost cause (see my post on salvaging irons), but are problematic. Again, period irons are abundant, but if you’re buying the plane to use, you’ll want to invest in a modern replacement from somewhere like Hock, Lie-Nielsen, or Lee Valley Tools. They are far superior and will make a significant difference in the plane’s performance.

The cap iron, which is sometimes called the chipbreaker or double iron, attaches to the top of the iron and provides both stability and a raised surface to literally break the shaving as it’s cut from the wood. Other than very heavy pitting or a hack grinding job, I’ve rarely seen one of these that wasn’t usable.

Lever Cap
The lever cap sits on top of the iron/cap iron assembly and provides tension to hold them against the frog. Lever caps are sometimes found with chips along the bottom edge, either from having been dropped or used as a screwdriver to loosen the wide screw that attaches the iron and cap iron. While unsightly, a chip along the bottom edge doesn’t really affect its functionality. Again replacements are plentiful. Of greater concern is if it’s missing the tab lever at the top, which acts as a cam that locks the lever cap against the frog. It’s rare that this is missing, but the lever cap cannot function without it.

Frog Adjustment Hardware

Hardware
I’ve covered all the major functional parts, so all that remains is the miscellaneous hardware on the plane – screws, bolts, brass knob, etc. You will want to make sure all the parts are there in order for the plane to function, unless you’re willing to buy replacements on eBay. Since Stanley and others used a very unusual threading on their hardware, you won’t find replacements in your hardware store.

The knob and tote are attached to the plane with a bolt that is threaded on both ends, topped with a brass nut that is visible from the top. Models made during WWII may have single piece steel bolts.

The frog should have a bolt sticking out of the front of it that holds the iron/cap iron via the lever cap. The frog itself is attached to the base with two smaller bolts with washers. At the rear of the frog should be a large brass knob that is used to raise and lower the iron through the throat. It’s important that this knob turn freely across the full length of its bolt, although it’s not unusual to have to clean this area thoroughly before it will work as intended.

On Stanley bench planes made after 1907, there will be an adjustment bolt that engages a small plate attached to the bottom rear of the frog. This enables fine forward/backward adjustments to the frog, which has an effect similar to closing the throat of the plane for fine cuts. Since most bench planes did not have an adjustable throat as found on some of the better block planes, this frog adjustment allowed movement of the entire frog, which accomplished the same thing. Moving the frog back opens the throat for thicker cuts, while moving it forward closes the throat for very fine shavings. It’s actually pretty rare to find this feature permanently frozen due to rust and corrosion, but it’s something to look out for. While it may take a few days of soaking in penetrating oil, they almost always free up.

That’s pretty much it. Very few vintage hand planes are in perfect condition, so it’s important to have realistic expectations. Almost all show the effects of age and use. This is what gives them character. Perhaps most important for new buyers shopping for a first hand plane is to first understand how they function and how they are used. That will make evaluating condition much easier and the assessment more relevant. Additionally, all new hand plane purchasers need to understand that no tool they buy, whether 100 years old or manufactured yesterday, is going to function effectively without proper tuning. That discussion I will save for another post.

***

Tools shown in the photos were returned to functional condition by Virginia Toolworks using museum quality archival preservation techniques.  Sharpened and tuned for use, every tool is fully tested and adjusted until perfect.

Filed under Hand Planes, Preservation, Tools Tagged with , , , , , , , , , , , , , , , , ,

Condition – The Eye of the Seller

May 9, 2012 Leave a comment

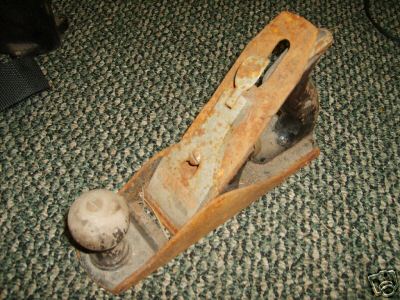

026 SB4-T19 ebay
When it comes to vintage tools, condition, like beauty, is in the eye of the beholder… or more specifically, the eye of the seller. So many online tool sellers throw around vague, undefined terms like ‘great condition’, ‘mint condition’ etc., it’s hard to get a good sense of exactly what you’re buying, especially on Ebay. I use such terms sparingly, and only as a complement to a much more specific description of condition and features. That’s why I write my listings using specific descriptives, not subjective adjectives.

Unless they were hermetically sealed soon after they were made, all vintage tools show some degree of age, whether through loss of finish, dents, dings, and scratches from use, transport, and storage, rust damage, or simply darkening from age and environment. It’s also healthy to keep in mind that relatively speaking, these were not precision made tools in the way we think of precision made tools today. Quality control was more subjective, and let’s face it, these were tools of tradesmen who carried them around in wooden boxes on horse drawn carriages. It’s a wonder any of them even survived! Customers of the day were not likely too concerned with cosmetics. They were not the disposable, ‘throw it away and buy a new one’ culture we are today. They used things until they were worn out, then they fixed them up as best they could, and used them some more.

For me, mint condition means brand new, unused, just as it was when it was sold. Anything less is near mint, very fine, fine, good, or user grade. For tools that are 50 to 150 years old to be in mint condition, they would have to not only have never been used, but kept in climate controlled storage so as not to sustain permanent rust or corrosion damage. I’ve seen very few tools that meet this criteria. Near mint to me means the tools was never used or used very lightly. It may well show some evidence of age, but overall looks like something akin to a floor sample. I think far less than 5% of vintage tools fall into this range. The vast majority of tools fall somewhere between Very Fine (maybe 5-10%), Fine (10%), Good and User (45%), and Poor (30%). All of these are, of course, very rough estimates based on my own observations and experience.

I guess the takeaway is, when you’re shopping for vintage tools, whether to use or display, ignore the subjective descriptors and adjectives such as ‘Good’ or ‘Mint’ or ‘Perfect.’ Don’t make assumptions about features, condition, or whether the tool is in working condition. Don’t be afraid to ask questions or request additional photos (if the tool is being sold online). And always be wary of tools that have been over-cleaned or ‘restored.’ To some, restored simply means sharpened. To others, it means completely refinished.

Filed under Preservation Tagged with , , , , , , , , , , , , , , ,

Salvaging Pitted Plane Irons

April 17, 2012 Leave a comment

There’s no question that modern irons are far superior to the vintage irons that you find in virtually all old planes.  Unless you’re a casual   woodworker who only uses your plane(s) a few times a year, the investment in a new A2 or O1 steel iron (from companies like Hock, Veritas, or Lie Nielsen) will provide far superior performance.  These irons are thicker, flatter, and hold an edge better than the old tool steel irons.  That said, woodworkers 100 years ago did just fine with what they had, and many woodworkers today are also collectors and prefer to use their vintage tools in the same manner and with the same limitations as their ancestors.  Regardless of what camp you fall into, at some point, you’re going to come across a plane iron that is pitted.  It is inevitable and unavoidable.

Conventional wisdom and learned advice tells you to pass on irons that are pitted from rust damage.  True, there are plenty of vintage irons out in the market that are undamaged or in at least serviceable condition.  Many people, in fact, throw away or sell for scrap old damaged irons in lots on Ebay, and with good reason.

The problem is, of course, that pitting on the non-beveled (flat) side of the iron often prevents you from polishing it flat and smooth.  Pits that reach the cutting edge create tiny irregularities that subsequently reveal themselves in the shaved surface of your wood.  By contrast, pitting on the beveled side of the iron is of little consequence since it never actually touches the wood.  It might look bad, but it doesn’t affect the iron’s performance.  The only part of the iron that matters is the cutting edge, and both the bevel and flat side of that edge must be properly dressed – sharpened and honed to cut clean.

So what to do with irons that are badly pitted?  If the pitting is limited to the un-beveled side, all you might need do is flip it over, reversing the bevel direction.  Note that you’ll lose about a quarter inch of iron length making this reversal.  And if both sides of the iron are pitted, there is little point.  A better, and simpler solution, is to adjust your cutting angles slightly, adding a slight back bevel to the polished (un-beveled) side – enough to remove the pits and reach clean metal.

Using a standard bench plane as an example, the iron is seated on the frog at a 45 degree angle.  Most woodworkers sharpen the iron with an angle somewhere in the 25 to 35 degree range.  By putting a back bevel of a couple of degrees on the pitted back side, you effectively cut through the pitted surface creating a clean, undamaged edge.  Adjusting your primary bevel angle to compensate (if desired), you end up with a cutting angle of about 46 to 50 degrees – not a critical difference for many woodworkers.  In fact, increasing this angle of attack is advantageous when planning wood with difficult grain. [1]

Now, if you’re obsessive about your edge geometry and angle of cut, this might not be a satisfactory solution.  Although if that’s the case, you probably shouldn’t be futzing with a vintage plane in the first place, let alone salvaging a pitted plane iron.  But if you’re like me, having one or two extra irons set up for different purposes is a must, and finding good use for old irons suffering from age and neglect makes me feel good.  It’s just a matter of purposing them for the right job.

____________________________________

[1] Hock, Ron, Back Bevels and Plane Geometry, 2010.

Filed under Preservation, Sharpening Tagged with , , , , , , , , ,

Restoration & Preservation of Hand Plane Totes & Knobs

April 17, 2012 1 Comment

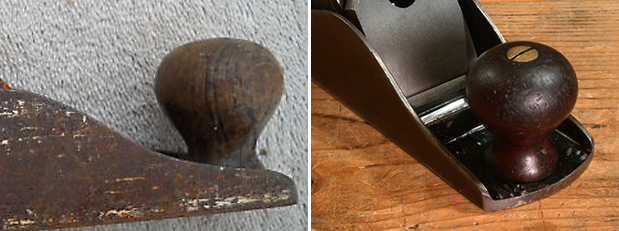

Knob Before & AfterVintage hand planes are commonly found in the wild with filthy, crud encrusted, cracked, or broken totes and knobs.  While I periodically come across a plane with a knob or tote that has an old repair (usually poorly done), most have been left neglected and broken.  Correct vintage replacements, especially for Stanley planes, are readily available on Ebay, but they are expensive, often costing as much or more than an entire tool.  In my experience, however, most damaged wood components can be restored for use, if not display, with just a little effort and patience.

In keeping with my overarching philosophy that less is more when it comes to vintage tool preservation, I strive to retain as much of the original finish and character of the wooden components as possible.  To that end, I don’t advocate refinishing per se, unless of course the original finish has been destroyed through exposure to the elements, heavy use, or in the course of completing the repair.  The very nature of extensive damage (multiple breaks, chips, missing pieces, etc.) will frequently necessitate at least some degree of restoration to the finish itself.  However, when the only other alternative is to discard and replace the damaged part, more radical restoration techniques are easily justified.

In the following sections I will take you through the steps and materials required to complete many of the most common repairs to totes and knobs.  While there are numerous solutions to any one problem, these are the techniques I have found to produce the most favorable results.

General Cleaning and Preservation
The totes and knobs on many vintage hand planes are perfectly fine just as they are.  Unless the tool was never used, virtually all will have some degree of dents, dings and abrasions from time spent in a toolbox.  There may also be a few minor chips along edges, specks of paint, and perhaps the initials of the original owner stamped into the surface.  The varnish might be crazed and there may be some checks in the grain from age and dryness.  And, of course, there may well be layers of dirt, dried oil and grime hiding an otherwise beautiful piece of rosewood.  All of this is to be expected.

I don’t need (or necessarily want) my totes and knobs to look pristine, and most of the time the only treatment I give them is a little wax, or if the wood appears dry, a thorough rub down with a hydrating concoction of linseed oil, turpentine, and vinegar (LTV).  You can make your own or purchase Kramer’s Best Antique Improver, which I’m pretty sure Mr. Kramer makes at home in his kitchen.  Applied with a cotton rag, this all natural solution cleans and nourishes the wood, bringing back is lustrous beauty without petrochemicals, and most importantly, does not alter the finish or surface features at all.

Dirt, Crud, and Paint
For totes and knobs that are structurally sound, but have layers of crud stuck to them (where basic cleaning isn’t enough), I use a very fine synthetic pad or steel wool soaked in the same LTV solution as a lubricant to the abrasive pad.  Using very light pressure, I scrub away whatever crud I can.  This requires a cautious touch, however, as too much scrubbing can easily damage or remove the original finish.  Go slow and repeat if necessary.  Don’t try to remove every speck and spot or the piece will start to look refinished.  Wipe off the slurry of muck this creates and finish up with a generous application of LTV, polished with a clean cotton cloth.

I like to leave paint specks intact since they are a colorful part of the tool’s history and character, but if you’re determined to remove them, use the same technique described above, but with a little more vigor.  This will usually remove most of the tiniest specks.  For larger spots, lubricate the wood with turpentine, and very carefully scrape the paint spot off using a card scraper or any tool with a fairly sharp angle.  I use a three sided hollow scraper that can be found in most art supply stores.  The turpentine provides light lubrication for the scraper, which helps protect the surrounding and underlying finish.  This will leave visible scratched spots, so go over the entire piece again with the fine synthetic pad or steel wool lubricated with turpentine or LTV to blend in any marks you made.  Finish up with an application of LTV, polished with a clean cloth.

Keep in mind that by doing this you are altering the original finish of the piece, not to mention erasing part of its history.  This is a destructive technique, however mild.  Once done, it cannot be reversed, so go slow.

Cracks and Breaks
Like everything else, damage is part of the tool’s history.  Wooden parts are comparatively fragile, and when tools are used improperly or carelessly, they suffer chips, cracks, and breaks.  Age and environment also takes a toll.  Once damage occurs (or is found), there are three options available to the owner – leave it as is, repair the damage, or replace the part.  If you decide to repair the damage, there are two further considerations – functional stability and visual aesthetic.

Cracks and clean breaks are easy to repair, especially if done right away.  Older breaks tend to be literally rougher around the edges, but are still no lost cause.  Even the nastiest shattered breaks with multiple shards, splinters, and open gaps can be repaired with surprisingly appealing cosmetic results.

When performing a repair, function trumps form.  Making it pretty isn’t of much value if the repair breaks the first time you use the tool.  Repairing cracks and breaks necessitates the adherence of two separated pieces of wood, and the obvious solution to that is some sort of adhesive.  Anyone making anything out of wood will likely have one of the commercial polyvinyl acetate (yellow wood) glues close by.  This is probably the most common type of glue used in woodworking.  If you’re a purist you might favor hide glue.  The newer polyurethane glues (ex. Gorilla brand) are popular and very strong, but messy.  These are just a few of the options available.

I’ve tried just about every type of glue, and have found that 2 part epoxy provides the best results for this particular application.  It is quite strong, does not require pressure while curing, cures under a wide range of temperatures, has good gap filling properties, can be filed and sanded, is easily tinted, and accepts a finish.

2 Part epoxy consists of a resin and a hardener.  Simply squeeze out an equal measure of both, mix thoroughly, and apply.  I tint the epoxy with just a pinch of dry pigment (available at art supply stores) before mixing.  I typically use black or raw umber if working on rosewood.  It doesn’t take much to tint the epoxy, just a tiny amount.  I should note that you can also use very fine rosewood sawdust to tint the epoxy, which works exceptionally well and is naturally a perfect color match.

Mix the epoxy thoroughly and apply liberally to both mating surfaces.  Use a razor blade or thin knife to work it into cracks.  Clamp tight as best you can remembering it’s actually more important that the pieces stay properly aligned than under a lot of pressure.  With this method, you actually want a little squeeze out consistently along the seam to fill any gaps that might remain, so don’t wipe it off.  Epoxy starts to set in about 5 minutes, but takes a good 24 hours to cure.  Let it fully harden before proceeding.

Once cured, use the scraper or a file to remove the excess epoxy.  I use old steel files for this purpose.  File sharpness for this sort of woodwork is not as much of concern as it is for metalwork, and old files are plentiful and cheap.  You’re going to damage the surrounding finish doing this, but don’t worry, you’ll touch it up later.  Nasty breaks or poor alignment during curing may leave some rough spots.  Go ahead and reshape these areas using the files or a rasp.  Remember to use progressively finer teeth.  Once shaped, finish up with 200 to 320 grit sandpaper to remove file marks and help refine shape and edges.  At this point there should be no open gaps or holes.

Now you’ll need to repair the finish.  Stanley and most competitors used a varnish on their totes and knobs, and fortunately for us, they weren’t too concerned with leaving a furniture grade finish.  The finish they imparted was utilitarian and that works in our favor.  There are lots of finish options to choose from, but I prefer a penetrating oil and varnish blend, such as Watco Danish Oil Finish.  It comes in both tinted and natural versions, which you can tint yourself if desired.  Tinting helps hide the epoxy seams and blends well with the existing finish. Follow the directions on the can closely.  I apply it to the repaired portions only, slightly overlapping the original finish on adjacent areas.  The finish builds up slowly and will require multiple applications.  This takes patience and time, but the results are worth it.  Once you feel you’re getting close, dry buff the new finish using the fine synthetic pad, blending it with the areas of old finish.  Repeat steps with more Watco if necessary.   Once the new finish matches the old in overall luster and is completely cured, top it off with a good rub of LTV or wax.  Buff to a shine with a cotton cloth.  If the new finished area looks dull compared to the original finish, you need to go back and add more coats.

When well executed, breaks and cracks repaired in this manner are not only extremely strong and stable, they are nearly invisible.

Chips and Missing Chunks
Knobs with minor chips around the base and totes with missing or chipped tips are common.  Many chips are simply not practical to replace – those along the top edge of the tote’s tip, for example.  Others, such as an entire missing horn or a chunk missing from a knob base provide an interesting challenge.  The solution is no mystery, however.  It’s a matter of filing or sanding a perfectly flat mating surface, attaching a section of replacement wood, reshaping the new piece, and applying a finish.

Often the most frustrating part of the process is finding pieces of matching rosewood to use for the repair.  For this I save all the broken totes and knobs I can find to use as scrap.  It’s just a matter of cutting a new piece to the approximate size needed for the repair.  The most difficult part of the process is creating perfectly flat mating surfaces.  As discussed above, the epoxy is somewhat forgiving in its ability to fill gaps, but better mating makes for a stronger joint.  The easiest way to accomplish this is by using a motorized disk sander with an adjustable table.  If you don’t have one, you can do it by hand using sandpaper adhered to a flat substrate.  ¼” or thicker plate glass is best, although I’ve achieved great results using a four dollar 12” x 12” granite surface plate.  It just takes a very steady hand.

The glue up process is the same as previously described.  Once attached, shape the new section using rasps and files, followed by sandpaper.  Apply the finish and you’re done.

Fixing Old Repairs
Fixing poorly executed old repairs frequently present the biggest restoration challenge.  It’s easier to do it right the first time than to undo and fix a mistake that was already made.  The variety of old repairs you might come across are infinite, so I will speak in general terms.

Begin by removing any nails, screws, or bolts present.  Old glue joints can often be softened by gently heating the piece.  Just be careful not to get too hot or you’ll ruin the finish, if not set the whole thing on fire!  If the old repair joint is bad enough, you might have to cut through it with a band saw to give yourself nice new mating halves, although you do lose a little of the dimension.  Some joints are brittle enough to break apart by hand.  Others are poorly aligned but extremely strong; you may not be able to get these apart at all.  The important thing is to assess and decide up front just how you plan to proceed, then go at it.

If nothing else, a poorly aligned or ugly break repair (that is otherwise stable) can be cosmetically improved by filling the gaps and holes with tinted epoxy.  This includes nail and screw holes.  Once cured, file and sand it smooth and touch it up with the Watco finish.  Where alignment is poor, this may require some fairly aggressive reshaping of surrounding wood, but the results are usually much improved.

Damaged Finishes
On some planes the wood finish is damaged or worn so extensively that the wood appears bare.  On others, the finish might be intact but is very faded.  Others still, especially those from the 1940s and 50s might have a finish that is heavily crazed and flaking off.  It’s very important to determine just what the problem is before attempting a repair.  I’ve seen planes on which the wood at first glance looked like a completely lost cause, only to find that a simple cleaning and conditioning brought them back to life.  Proceed conservatively until you know what you’re dealing with.

Wood that has lost it finish for whatever reason can be restored following the steps above.  If the damage is weather or water related, you may need to sand down the surface before proceeding.  If the wood has a lot of open pores, you may get better results by wet sanding with the Watco, especially through the first two or three coats.  This creates a slurry that helps fill the pores and seal the wood.

For finishes that are flaking off, the best you can do is remove all the loose finish using the scraper or fine steel wool and turpentine.  I’m usually pretty aggressive with this because the flaking reflects something wrong with the original finish itself.  A healthy, properly applied finish will not flake off, even after decades.  Better to remove all of it and start over.

I don’t mind scars, scratches, and initials, etc.  I like the character they provide.  If rough, a single application of Watco will help seal the wood, preserving and protecting these features.

Painted and Varnished Hardwood
Stanley used painted hardwood totes and knobs in its planes for a brief period during the 1940s.  These are almost always found in terrible cosmetic condition, with chips and areas of loss to the painted finish.  After briefly returning to rosewood in the late 1940s and early 1950s, the company switched to heavily varnished hardwood, and then finally to a lighter varnished hardwood in the 1960s.

In my experience, these finishes are virtually impossible to restore in any conservative manner.  Short of simply cleaning them, leaving them otherwise as is, the only other thing you can do is to completely refinish them.  Unfortunately, refinished wood looks… refinished.  If you like your tools to look like new, have at it.  I just clean them up as best I can and call it a day.

Loose Totes
Pick up 5 planes and at least one of them will have a loose tote.  Have you ever tightened that tote bolt as far as you dare only to find the tote still slips when you go to use it?  It seems to be more common in the shorter smoothing planes that don’t have a toe screw in their totes.  Perhaps it’s due to wood shrinkage… who knows?  Regardless, it’s easy to resolve.  Remove the bolt and grind off a millimeter or so to shorten it.  Replace the bolt and tighten it down.  The tote should now be secure. You might have to do this a couple of times depending on how loose it is.

Suggested Resources
• Turpentine
• Kramer’s Best Antique Improver
• Fine Synthetic Wool Pads
• Fine Steel Wool
• 2 Part Epoxy (5 Min)
• Artists Pigments (Black, Raw Umber, Burnt Sienna)
• 3 Sided Hollow Scraper
• Old Metal Files (Mill, Half Round, Round, etc.)
• Wet/Dry Sandpaper (60 to 320 grits)
• Cotton Rags
• Rosewood scraps

Filed under Hand Planes, Preservation Tagged with , , , , , , , , , , , , ,

Archival Tool Preservation – Cleaning and Tuning

April 16, 2012 4 Comments

Stanley Bailey No. 4, Type 19 This guide will cover the cleaning, preservation, and tuning of vintage hand tools using primarily natural, archival materials and methods similar, if not identical, to those used by museums and restoration professionals.  I will be focusing on the majority of tools found out in the wild, and save discussion of rare, mint, historically important, or other exceptional tools for a different guide.  Likewise, I won’t be covering restoration of tools found in extremely poor condition, or those that have suffered significant damage.

Opinions on the cleaning and restoration of vintage tools vary proportionally with the number of techniques people employ.  Some take an ultra-conservative approach with a fervor that approaches religious conviction, firmly believing that old tools should not be cleaned at all, rather left in their current state with every molecule of dust, rust, and crud that history has provided.  At the opposite end of the spectrum are those who like their old tools refinished to like new condition.  This typically involves lots of stripping, sanding, painting, polishing, and varnishing.  And, of course, there are near infinite variations between the two extremes.

In my opinion, less is more when it comes to cleaning and restoring vintage tools for use.  It’s easy to clean a little more, but you can’t unclean or undo what’s already done.  Rust is just flat out bad – it’s destructive and there is no justification for allowing it to remain on a tool.  Likewise, dirt is dirt, and unless it was trod upon or wallowed in by a former president or religious deity, it tends to reduce a tool’s effectiveness and can cause additional damage.  Even sawdust, which might be considered benign, is apt to hold moisture, which can cause rust.  Additionally, wood is naturally acidic, and over time can be a caustic and corrosive influence on the metal it contacts.  There wasn’t (and isn’t) a tool made that should not be regularly cleaned, both to prevent corrosion and ensure proper functionality.  The fact that vintage tools were at some point abandoned to modern replacements does not, in my mind, justify allowing them to remain filthy today – whether in use or on display.

So, all that said, how should vintage tools be properly cleaned, preserved, and tuned?  To answer that question you have to consider two primary questions:  1. What job was the tool originally designed and intended to do? and 2. Will this tool be restored for use today or display only?  Hand planes, for example, were intended to shave and shape wood surfaces and edges.  Therefore, vintage models intended for renewed use will need to be adequately cleaned, but more important they need to be tuned in order to function as intended.  The focus on those bound for the display shelf will fall more toward the visual aesthetics of proper cleaning.  Tuning may not be necessary or desired.

Archival Cleaning
My philosophy on cleaning begins with the materials I select and ends with the proper application of these materials to prevent damage and minimize any alteration of the tool’s naturally acquired patina and finish.  Applying the less is more concept, I start every restoration using as many all natural, earth based products as possible.  While not completely exclusive or even always feasible, that’s where I start.  I begin with a citrus based cleaner and degreaser and soft bristle toothbrush to remove accumulated dirt and grime.  As a rule, I always use softer metal against harder metal to prevent scratching and surface damage.  So for heavy or difficult crud, I might go to a nylon or brass bristle brush, but only when necessary.  Spots of heavy rust incrustations generally have to be gently scraped off to get back to undamaged metal, otherwise they will continue to corrode.  For flat surfaces, I typically use a cotton cloth or fine nylon finishing pads with the citrus cleanser followed by an all natural blemish cleaner and clarifier made for wood and metal.

For wooden handles and knobs in average to good condition, I use an all natural concoction based on linseed oil, turpentine, and vinegar (LTV), among other secret ingredients.  For wood in poor condition or heavily soiled, I use mineral spirits with a nylon pad or 0000 steel wool to clean it, followed by a couple of applications of the LTV.  Cracks and breaks are repaired using tinted epoxy and clamps.  Carnauba wax can be applied after the LTV dries, but I tend to not to use it as the LTV does such a nice job.

Completely disassembled, I clean all the steel nuts and bolts by hand, with special attention made to removing rust from the threads and crud from the slots.  Using a light penetrating oil, I brush all the threads using a fine brass or steel brush – but again, I do this by hand to maintain control and not over clean.   The oil creates a nice barrier for future rust prevention.  I use the same oil to clean each screw hole.  Contact surfaces on the tool where parts mate together are also cleaned by hand in the same manner.  For the brass parts, I clean them using the penetrating oil and toothbrush or nylon brush, taking great care to remove dirt only and not abrade the patina or surface.  The oil is crucial here as it provides lubrication and a barrier against scratching.  Once the dirt is removed, there is invariably a lovely naturally aged oxidized patina found hiding beneath.

Finally, I rub down the japanned and exposed metal surfaces with the LTV concoction.  This dries to the touch, helps retard rust, and looks better than oil or wax. That’s pretty much it.  Tools cleaned in this way retain all of their patina, blemishes, and character, while losing the rust and dirt.  Best of all, nothing in the process is destructive, and other than removing the dirt and rust, the tool is left in exactly the same physical condition as when you started.

Tuning for Use
Whether purchased in 2010, or 1910, many hand tools (and virtually all planes) required some degree of tuning before use.  While it’s debatable as to whether the average journeyman of the last century took the time to do so, it’s nevertheless highly recommended.  Planes in general, and vintage planes in particular, require some attention in order to get the best out of them.  Soles were cast iron, and while milled flat during manufacturing, had a tendency to change dimensions, twist, or warp over time.  The smaller the plane, the more critical this can become, but again, depending on use.  I’m not going into great detail on all the methods used to flatten soles, or debate what is or isn’t flat enough.  Just keep in mind that folks used tools for a couple thousand years without 0.001″ tolerances, and didn’t seem to have any problem.  Basically, if you’ve got a reasonable flat surface to work against (jointer table, glass, or granite), you just progress from larger to finer grits to achieve a flat sole.

Generally speaking, the critical thing with all cutting tools is keeping the blade securely fastened to the tool at the proper angle, and of course keeping the blade sharp.  In fact, a plane is nothing more than a device for holding a cutting edge at the correct angle to shave wood.  On hand planes and spokeshaves, etc. the blade, or iron as it is properly called, is seated against an angled base.  On a plane this base is called the frog, and its angled surface must be flat and free of burs or obstructions that prevent the iron from seating completely flush.  Tuning the frog includes assessing its face and lapping it flat if there are high spots.  Similarly, the milled seating surfaces must also be free of corrosion and mate perfectly with the bed where it attaches.  Adjustment hardware must move freely but also be secure so there is no slop, or unwanted movement.

Finer points of tuning include providing proper flow for shavings.  The leading surface of cap irons should ideally be polished smooth to reduce friction as the shavings pass across it.  The mating edge of the cap iron should also sit completely flush against the iron to prevent shavings from jamming between the two.  Additionally, the lower end of the lever cap should rest flat against the cap iron in order to hold it securely and minimize shavings getting caught underneath.  All other knobs, wheels, and adjustments should be refined and lubricated to work smoothly and easily.

Finally, the single most important aspect of tuning is sharpening.  I would go so far as to say a poorly tuned but very sharp tool will consistently outperform a finely tuned but poorly sharpened tool.  Rather than try to go through the basics of sharpening, I highly recommend you get a good book and invest in a sharpening system that matches your needs and preferences.  Excellent references include the books by Lie-Nielson, Leonard Lee, and Ron Hock.  I will say that unlike most woodworkers who view sharpening as a necessary evil, I actually enjoy it and find it to be quite therapeutic and relaxing.

I realize this guide is by no means comprehensive, but it should provide a good start for anyone looking to restore, preserve, and care for vintage tools.

Filed under Preservation Tagged with , , , , , , , , , , ,

%d bloggers like this:
